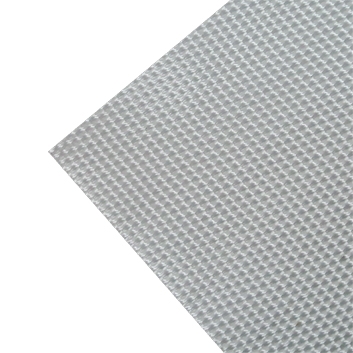

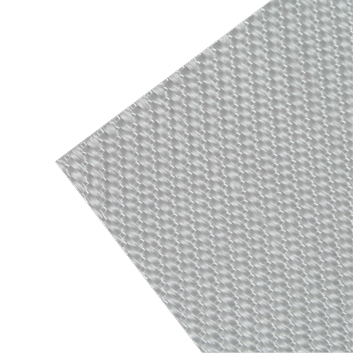

PET woven geotextile

TRST FWG-Series Woven PET is designed for long-term reinforcement of soil, made by high strength polyester, it offers strength, moisture/ mildew resistance, and is an ideal product of foundation for reinforcement.

‹ ›

Application

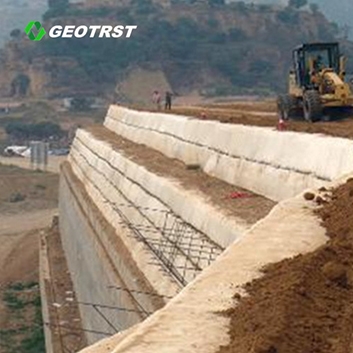

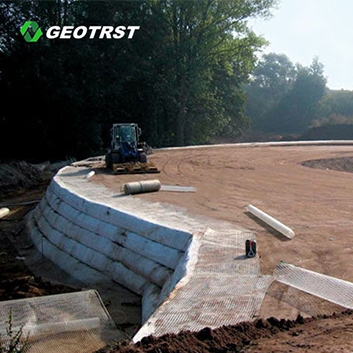

Used in Reinforced embankment with soft foundation; reinforcement for the side slope of retaining walls.

Specifications Download

Property	Test Method	Units	FWG100	FWG200	FWG300	FWG400	FWG600	FWG800	FWG1000	FWG1300
Wide Width Tensile Strength
MD @ Ultimate	ASTM D4595	KN/m	100	200	300	400	600	800	1000	1300
CD @ Ultimate	ASTM D4595	KN/m	100	50	50	50	50	50	50	50
Elongation @ Ultimate
MD @ Ultimatde	AASTM D4632	%	12	12	12	12	12	12	12	12
UV Resistance % Retained at 500 hrs	ASTM D-4355	%	70	70	70	70	70	70	70	70
Packaging
Roll Width		m	≥3.8	≥3.8	≥3.8	≥3.8	≥3.8	≥3.8	≥3.8	≥3.8
Roll Length		m	100	100	100	100	50	50	50	50
