Cubic Filter Bags

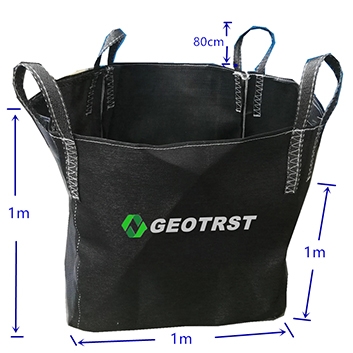

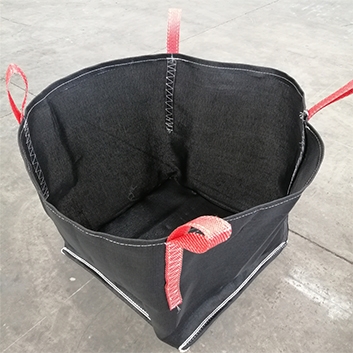

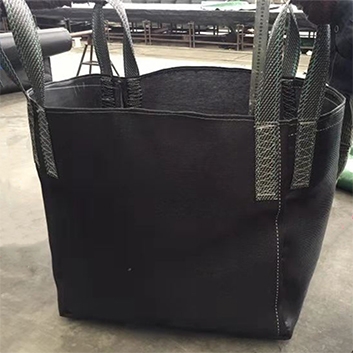

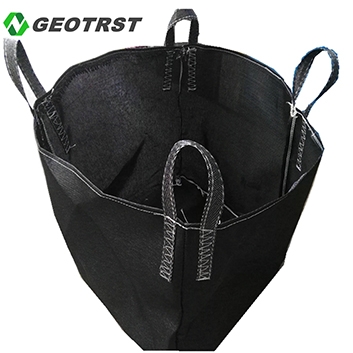

Cubic filter bags offer a fast and easy dewatering solution that is suitable for many different sludge types. The cubic filtering bag is designed as a quick and easy alternative to remove waterlogged sediments and residues from mines, industrial plants, construction sites and sewage works. The cubic filtering Bag is made from polypropylene woven geotextile. Our standard bag size is 1m *1m*1m. Custom fabrication is available. The stylish filter bag is characterized by simple-operation and cost-effective due to its labour-saving feature.

‹ ›

Application

-System mobility
-Low plant requirement
-High filling volume capacity

Specifications Download

Property	Test Method	Units	PPWB50	PPWB60	PPWB70	PPWB80	PPWB100
Wide Width Tensile Strength
MD @ Ultimate	ASTM D4595	1bs/in (KN/m)	3422 (50)	4106 (60)	4791 (70)	5475 (80)	6844 (100)
CD @ Ultimate	ASTM D4595	1bs/in (KN/m)	3422 (50)	4106 (60)	4791 (70)	5475 (80)	6844 (100)
Wide Width Tensile Elongation
MD	ASTM D4595	%	18	18	18	18	18
CD	ASTM D4595	%	18	18	18	18	18
CBR Puncture	ASTM D6241	1bs (N)	943 (4200)	1078 (4800)	1344 (6000)	2021 (9000)	2470 (11000)
Apparent Opening Size (AOS)	ASTM D4751	mm	0.4	0.3	0.3	0.4	0.4
Permittivity	ASTM D4491	sec-1	0.04	0.03	0.03	0.04	0.04
UV Resistance % Retained at 500 hrs	ASTM D4355	% at 500hr	90	90	90	90	90
Size		m	1.00x1.00x1.0 1.00x1.00x1.1 1.05x1.05x0.6 1.05x1.05x1.1 0.95x0.95x0.5	1.00x1.00x1.0 1.00x1.00x1.1 1.05x1.05x0.6 1.05x1.05x1.1 0.95x0.95x0.5	1.00x1.00x1.0 1.00x1.00x1.1 1.05x1.05x0.6 1.05x1.05x1.1 0.95x0.95x0.5	1.00x1.00x1.0 1.00x1.00x1.1 1.05x1.05x0.6 1.05x1.05x1.1 0.95x0.95x0.5	1.00x1.00x1.0 1.00x1.00x1.1 1.05x1.05x0.6 1.05x1.05x1.1 0.95x0.95x0.5
