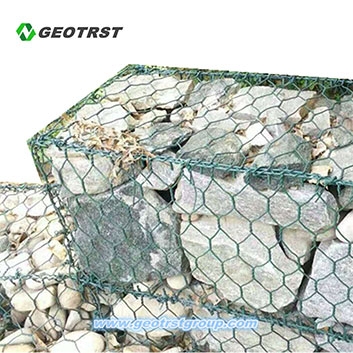

Gabion boxes are made of heavy galvanized wire / ZnAl (Galfan) coated wire / PVC or PE coated wires the mesh shape is hexagonal style. The gabion boxes are used widely in slope protection foundation pit supporting mountain rock holding river and dams scour protection. Gabions and geotextiles are usually used together to reduce water velocities and to re-capture river bed sediment in streams.

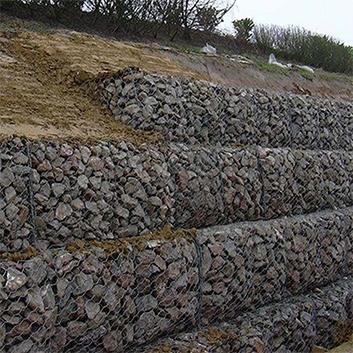

Gabion Retaining wall structures
− Coastal protection
− Rock fall protection
− Flood control & canal trainin

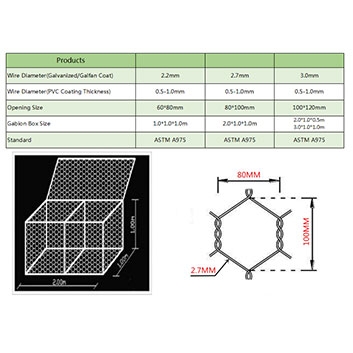

| Products | Woven Gabion Box / Mattress | ||
| Materials | Galvanized Wire | Zinc Coated 50g-500g/m2 | |
| Galfan Wire | 5% Al or 10% Al Is Available | ||
| PVC Coated Wire | Silver,Black Green Etc | ||
| Standard Gabion Box /Gabion Basket | |||
| Wire Diameter(Galvanized/Galfan Coat) | 2.2mm | 2.7mm | 3.4mm |
| Wire Diameter(PVC Coating Thickness) | 0.5-1.0mm | 0.5-1.0mm | 0.5-1.0mm |

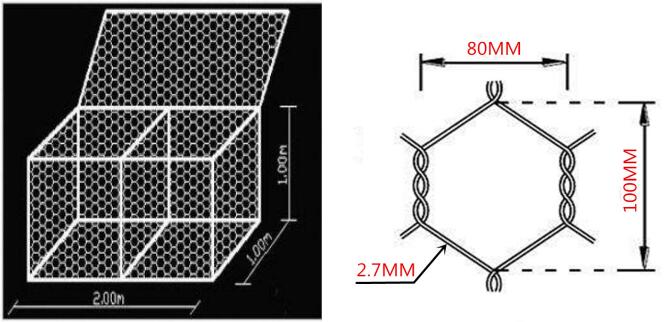

| Opening Size | 60*80mm | 80*100mm | 100*120mm |
| Gabion Box Size | 1.0*1.0*1.0m | 2.0*1.0*1.0m | 2.0*1.0*0.5m 3.0*1.0*1.0m |
| Standard | ASTM A975 | ASTM A975 | ASTM A975 |
| Reno Mattress/Gabion Mattress | |||
| Regular Size | 4*2*0.3m | 6*2*0.3m | |
| Gabion Roll | |||
| Regular Size | 2*50m | 3*50m | |
| Terrmesh Gabion | |||
| Regular Size | 2*1*1*3m | 2*1*0.5*3m | |
