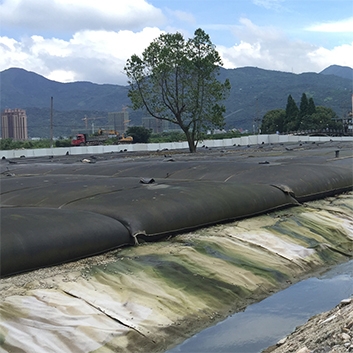

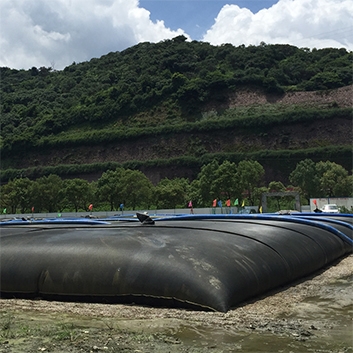

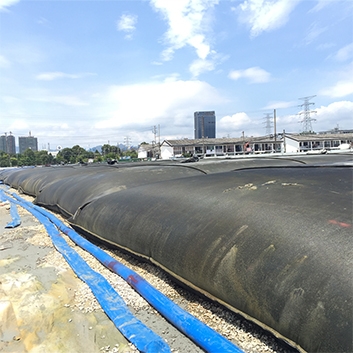

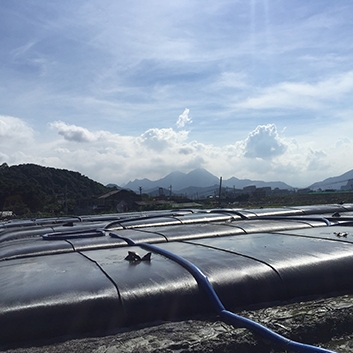

Dewatering bags are designed to filter sediment, silt and sludge on site and broadly in field operation. By pumping water into the bag, silt, dirt, sand and other pollutants are trapped and filtered so only water escapes to the ground below. The dewatering bags provide a simple yet effective method of removing heavy particles (>90 microns) from excavation water. Dewatering bags use inward pressure to provide enclosed dewatering without the need of a support container. The dewatering bags are sewn with high strength thread, providing proven durability and reliability in the field. These bags are available in any size by custom order.
| Property | Test Method | Units | PPWG500 | PPWG1000 |
| Wide Width Tensile Strength | ||||
| MD @ Ultimate | ASTM D4595 | lbs/in(KN/m) | 450(78.8) | 1142(200) |
| CD @ Ultimate | ASTM D4595 | lbs/in(KN/m) | 625(109.4) | 1142(200) |
| Wide Width Tensile Elongation | ||||
| MD | ASTM D4595 | % | 20(max) | 20(max) |
| CD | ASTM D4595 | % | 20(max) | 20(max) |
| Factor Seam Strength | ASTM D4884 | lbs/in(KN/m) | 400(70) | 913(160) |
| CBR Puncture | ASTM D6241 | lbs(N) | 2000(8900) | 4000(17800) |
| Apparent Opening Size (AOS) | ASTM D4751 | mm(U.S.Sieve) | 0.43(40) | 0.6(30) |
| Water Flow Rate | ASTM D4491 | l/min/m2(gpm/ft2) | 813(20) | 815(20) |
|
UV Resistance % Retained at 500 hrs |
ASTM D4355 | % | 90 | 90 |
| Proysics | ||||
| Area | ASTM D5261 | g/m2(oz/yd2 ) | 585(17.3) | 1119(33) |
