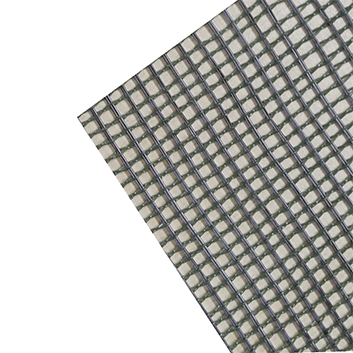

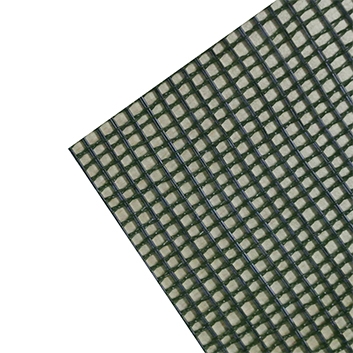

PP woven geotextile for engineered filtration

TRST SWG-Series Woven Polypropylene Geotextile for Engineered Filtration helps to isolate component of trash and subsoil filtering in the drainage layer.

‹ ›

Application

It is mainly used in landfill.

Specifications Download

Property	Test Method	Units	SWG190	SWG210
Wide Width Tensile Strength
MD @ Ultimate	ASTM D4595	lbs/ft(KN/m)	35KN/m	45KN/m
CD @ Ultimate	ASTM D4595	lbs/ft(KN/m)	24KN/m	30KN/m
Grab Tensile Strength
MD @ Ultimate	ASTM D4632	lbs(N)	135(600)	200(889)
CD @ Ultimate	ASTM D4632	lbs(N)	135(600)	200(889)
MD		%	15	15
CBR Puncture	ASTM D-6241
Trapezoidal Tear	ASTM D-4533	lbs(N)	1800	2700
UV Resistance % Retained at 500 hrs	ASTM D-4355	lbs(N)	90	90
Apparent Opening Size (AOS)	ASTM D-4491	sec-1	2.1	2.1
Water Flow Rate	ASTM D-4491	l/min/m2	5907	5907
Packaging
Roll Width		m	3.8	3.8
Roll Length		m	100	100
Weight		kg
Area		m2
